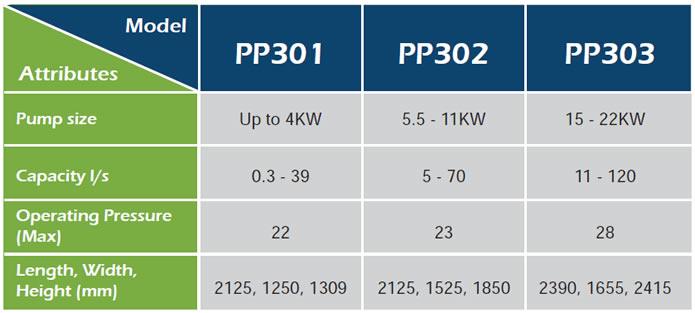

PumpPod 3 Pump Model

Vandal resistant; flush fitting handles and cover locks as specified by the end user
Radio or telemetry modules installed as required by user

Welded stainless steel pipe work rated to 16bar (standard unit)
Available with Grundfos CR vertical pumps
Stainless steel isolation ball valves before and after each pump
Stainless steel non return valve on each pump
All ball and non-return valves are 3 piece for ease of removal
10L accumulator vessel Pressure transducer c/w isolation valve for maintenance purposes
Pumps and pressure transducer are wired via plug and socket to the panel for easy disconnection
Emergency stop button located in pump section

Form II panel IP65
Variable speed drive control of the motors
PLC control system
Intelligent operation via Modbus between VSD and PLC
GSM text alert system options
User adjustable set points for HMI
Automatic alternation of the pumps available
Controls can easily be set as duty, standby or duty, assist, standby
Monitors the outlet pressure; only operates when required
Pump running current, hours run and trips are displayed on the HMI control screen.
Designed to provide operator friendly access during maintenance
Adjustable set points
PID Setting
High/Low Pressure Alarm
Rotation Time & Min and Max Speed of Pumps
